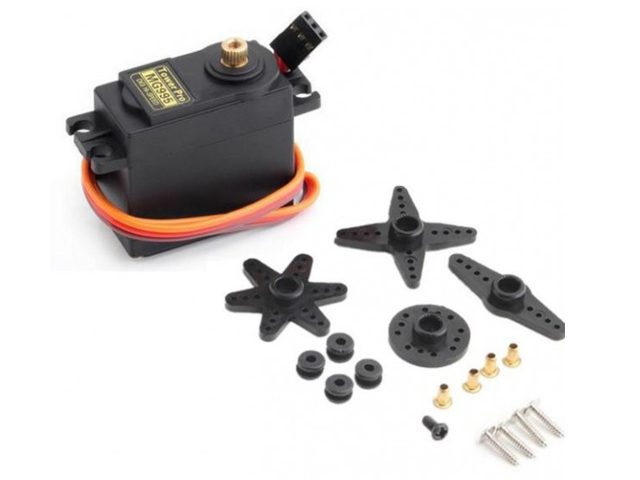

Servo Motor (Half Metal Gear) MG995 TowerPro Continuous Rotation

MG995 Servo Motor Pinout Configuration MG995 has three terminals as mentioned in the pin diagram and the function of each pin is given below. Pin Name Function 1 Signal pin (Orange pin) The PWM signal which states the axis position is given through this pin. 2 VCC (Red pin) Positive power supply for servo motor is given to this pin. 3 Ground(Brown pin) This pin is connected to ground of circuit or power supply. MG995 Features and Electrical Characteristics Half metal geared servo Stable and shockproof double ball bearing design Fast control response Constant torque throughout the servo travel range Excellent holding power Operating voltage range: 4.8 V to 7.2 V Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v) Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V) Continuous Rotation Dead band width: 5 μs Operating temperature range: 0ºC to 55ºC Current draw at idle: 10mA No load operating current draw: 170mA Current at maximum load: 1200mA Applications Drones and RC planes Security camera Robotics Solar tracking and positioning Door locks and safe locks Hobby projects Category: servo motors
