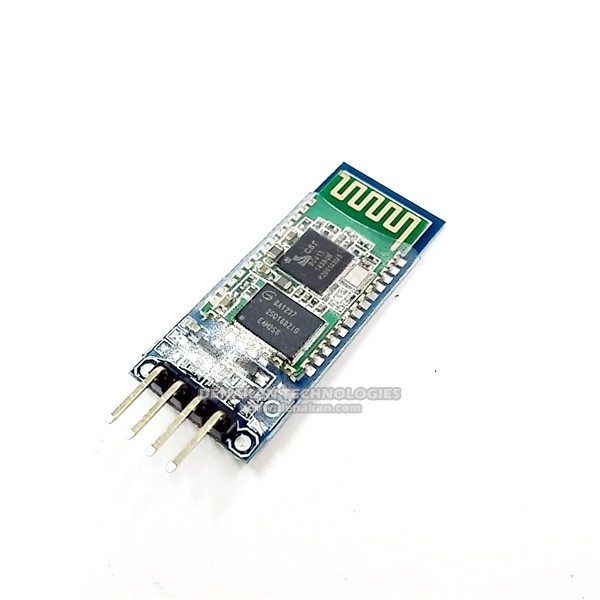

Description Packing List: ? 1pcs HC06 Bluetooth Module Receiver & Transmitter Communication Device For Arduino Compatible Specification: ? Operating voltage: 3.6 to 6Vdc ? Operating current: 30mA ? Communication distance: 10 meters ? Working mode: slave ? Passcode: 1234 ? Full-duplex serial interface ? Communication format: Only supports 8 data bits, 1 stop bit, no parity. ? Default baud rate: 9600 bps ? Dimension: 16 x 38 mm ? Weight: 5g Status LED indicator: 1)LED flashes = Bluetooth is not connected. 2) LED on = Bluetooth is connected. Pinout: 1)RXD = Receive data (In) – Connect this pin to Arduino board’s TXD pin. 2) TXD = Transmit data (Out) – Connect this pin to Arduino board’s RXD pin. 3) GND = Ground 4) VCC = 3.6 to 6V
