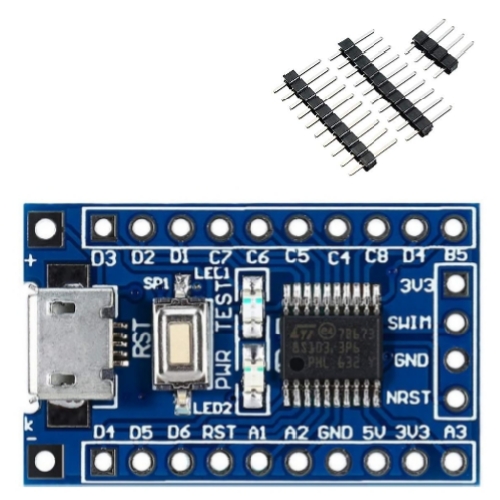

The STM8 development board, minimum system board, core board, STM8S103F3P6,Use STM8S103F3P6 as the master IC. all pins are leaded out and marked, with a reset button, power LED, and the program demonstrates LED, small but perfectly perform. Support SWIM debug mode. The development board is powered by Micro USB Cable, compatible with the smart phone data cable which is easy to find and use. you can use 2.54 pin on the board or power supply pad, the pad when using the power supply, input voltage range 4.5V-15V can output to the outside through pin 3.3V. Package Includes : 1 x STM8S103F3P6 Development Board
